The 52, marks a whole new era in the design of cruising catamarans, as indeed did its predecessor, the famed 500.
With her diamond-shaped vertical bows, bevelled hulls, her as if levitated deckhouse and tall rig, the 52 is no ordinary catamaran, but her originality goes a great deal further than just its "outer" appearance, or even her interior layout.
With her diamond-shaped vertical bows, bevelled hulls, her as if levitated deckhouse and tall rig, the 52 is no ordinary catamaran, but her originality goes a great deal further than just its "outer" appearance, or even her interior layout.
52 : LUXURIOUS AND CONTEMPORARY
Noble and luxurious materials, with soft shades for a harmonious interior
Continuous horizontal and fluent lines give the interior open and generous spaces
Continuity between exterior and interior life

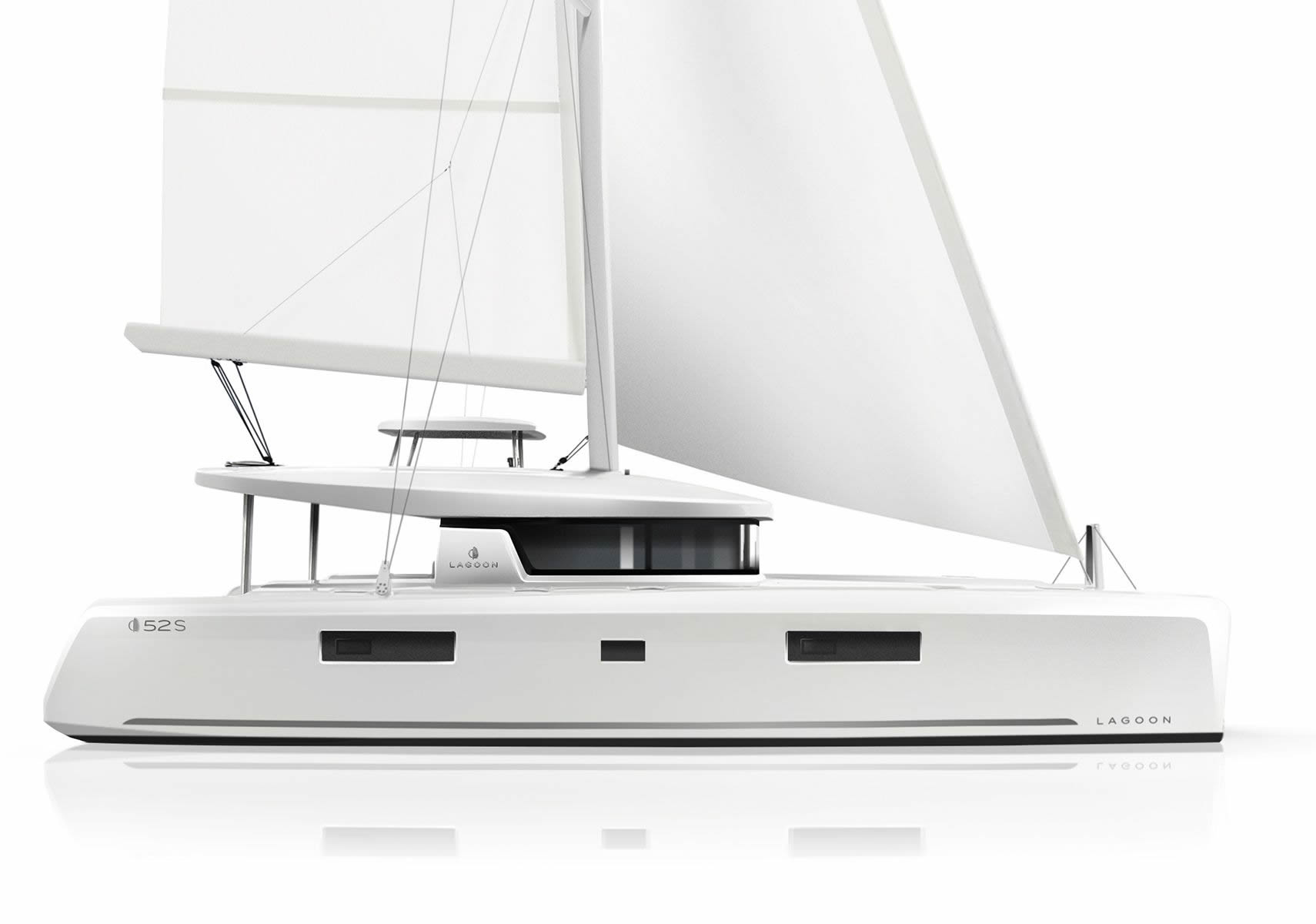

A slender exterior design for a boat with a strong character
EXTERIOR: ELEGANCE, COMFORT AND SAFETY

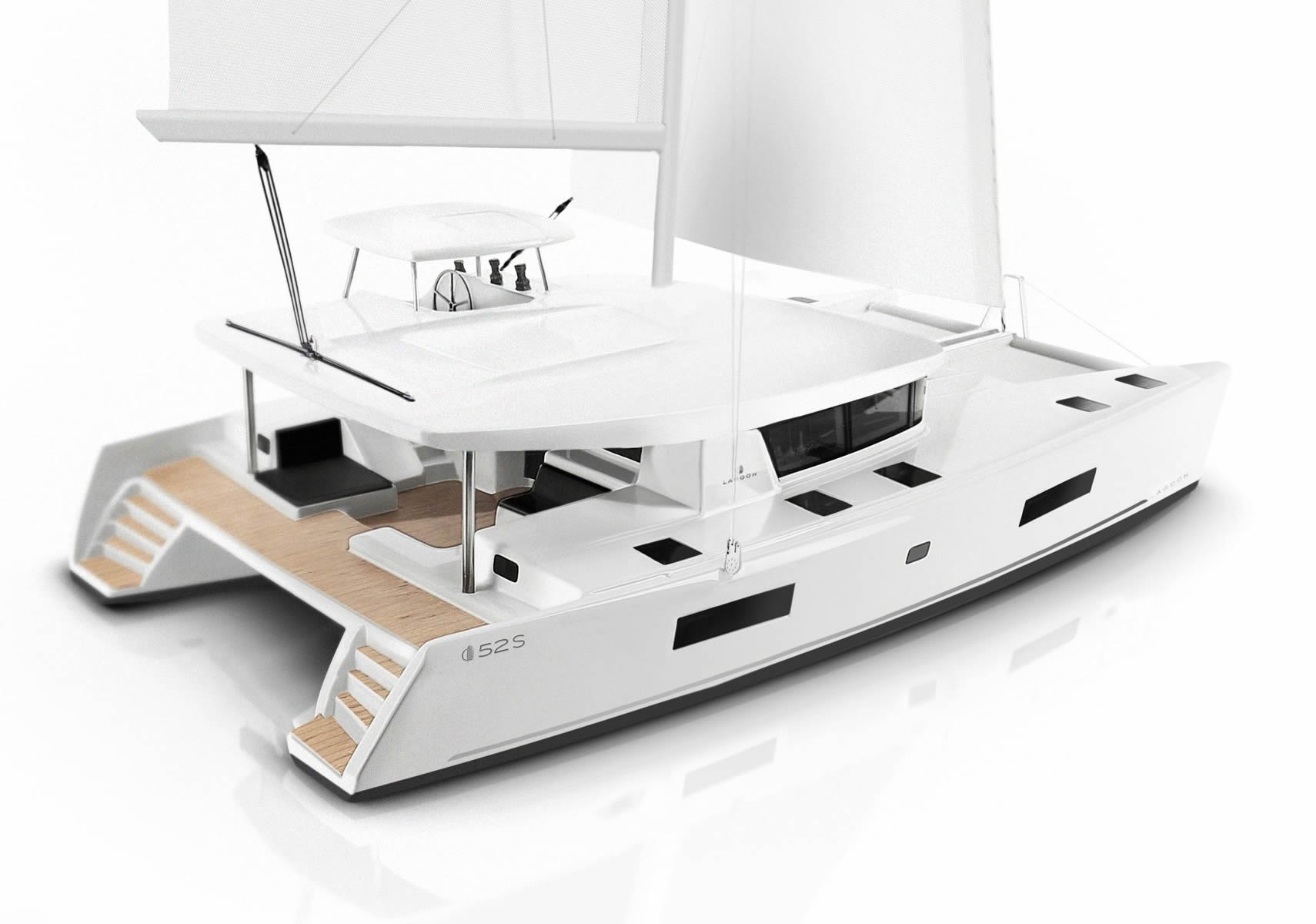

The boat is accessed via large aft transoms, facilitating boarding and disembarking
Broad sidedecks, with recessed deck hatches
The cockpit is level with the saloon, and has an outdoor lounge and sun-lounging area to starboard
The cabin-top design creates a more elegant and punchier roof outline
a large sunbathing area on the cabintop
The sail areas are the same with the FlyBridge version. However, the lower mast and boom:
- reduces pitching
- makes the boom easier to access
The cabintop bulkhead fitted steering position includes the following:
- all maneuvers
- integrated comfortable helm station seat for 2 persons
- access from the cockpit and the sidedeck
- an optional extra safety system is also offered, with a tilting composite beam (optional) to close off the steering station in bad weather
- a composite bimini above steering area is available as an option
Length over all
15,85 m / 52'
15,85 m / 52'
Beam
8,60 m / 28'3''
8,60 m / 28'3''
Draft
1,50 m / 4'11''
1,50 m / 4'11''
Mast clearance
27,66 m / 90'9''
27,66 m / 90'9''
Light displacement (EEC)
22,497 t / 49606 Lbs
22,497 t / 49606 Lbs
Sail area
156 m² / 1679 sq.ft
156 m² / 1679 sq.ft
Full-batten mainsail
97 m² / 1044 sq.ft
97 m² / 1044 sq.ft
Square top mainsail (opt.)
107 m² / 1151 sq.ft
107 m² / 1151 sq.ft
Fiocco autovirante
59 m² / 635 sq.ft
59 m² / 635 sq.ft
Engine (std)
2 x 57 CV / 2 x 57 HP
2 x 57 CV / 2 x 57 HP
Fuel capacity
2 x 496 l / 2 x 131 US gal
2 x 496 l / 2 x 131 US gal
Fresh water capacity
4 x 240 l / 4 x 63 US gal
4 x 240 l / 4 x 63 US gal
No. Of berths
6 à 14 / 6 to 14
6 à 14 / 6 to 14
EC certification
A :14 ; B :14 ; C : 16 ; D: 30
A :14 ; B :14 ; C : 16 ; D: 30
